Inboard Engine & Spares

Ocean Blue is the authorized PAC for YANMAR MARINE ENGINES in India. Yanmar is a reliable partner when it comes to delivering outstanding on-water experiences. From innovative solutions, latest technology, global service network, and genuine YANMAR parts, we have an unwavering commitment to our customers.

Models

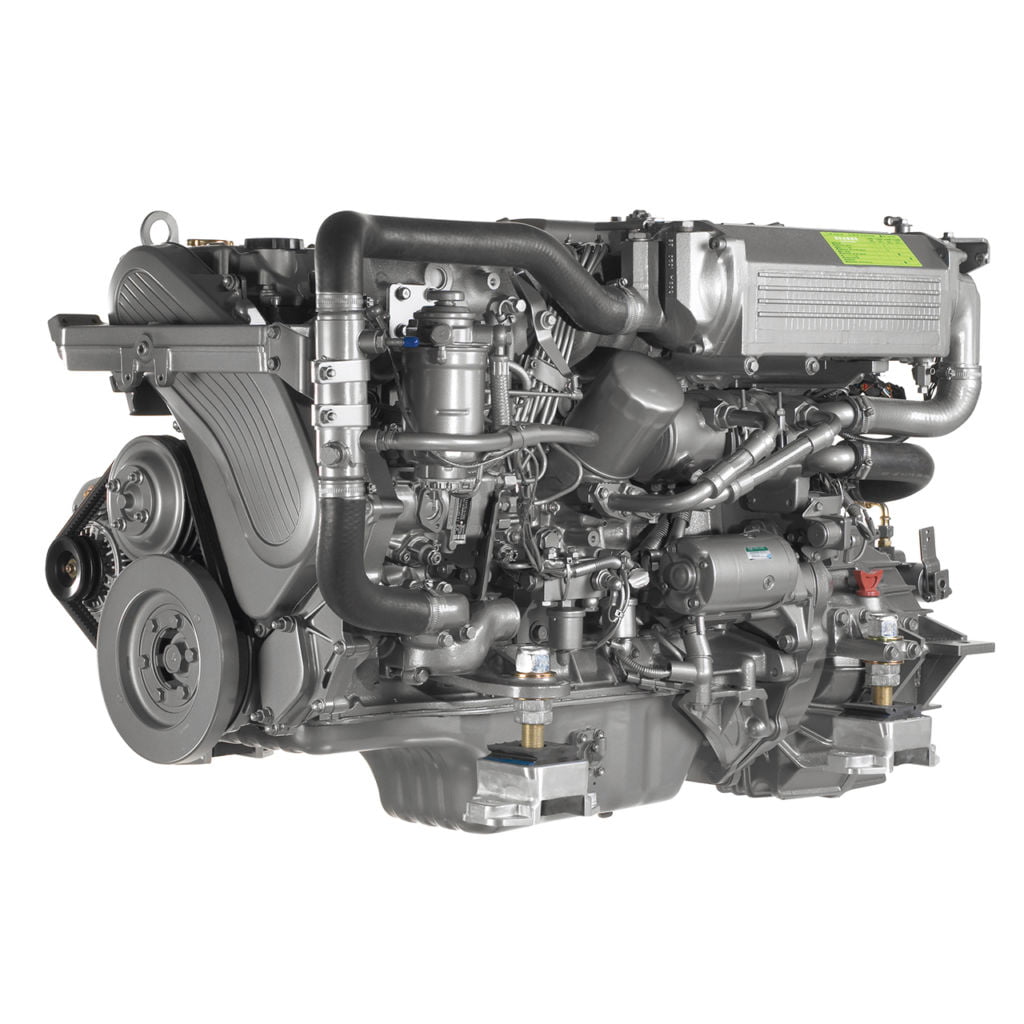

Yanmar 6LPA Specifications:

  • Model: Yanmar 6LPA Series (includes 6LPA-STP, 6LPA-STZP2, 6LPA-SHOP, etc.)
  • Type: 4-stroke, vertical, in-line 6-cylinder diesel engine
  • Displacement: 4.164 liters (4164 cc)
  • Bore x Stroke: 94 mm x 100 mm
  • Aspiration: Turbocharged and aftercooled (varies by model)
  • Cooling System: Freshwater cooling with heat exchanger
  • Fuel System: Direct injection, electronically controlled (mechanical on older versions)
  • Engine Control: Mechanical or electronic depending on variant
Enquire Now

Yanmar 6LY2A  Specifications:

  • Power Output: 324 kW (440 mhp) at 3,300 rpm
  • Displacement: 5.813 L (354 in³) with a bore × stroke of 106 × 110 mm
  • Aspiration: Turbocharged & intercooled, direct injection via in‑line pump
  • Weight & Size: Dry weight ~535 kg (1,179 lb) without gearbox; compact footprint (roughly 1.4 m × 0.7 m × 0.74 m)
  • Certifications: Meets RCD 1, IMO Tier 2, EMC and SOLAS standards
  • Electrical: 12 V/80 A alternator, electric starting (12 V, 3 kW)
  • Rotation: Counter‑clockwise from stern-facing view
Enquire Now

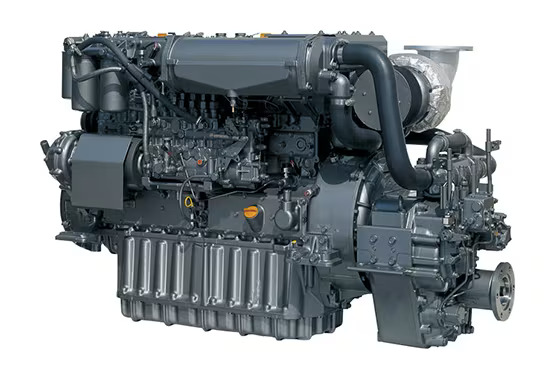

Yanmar 6CXBM Specifications:

  • Configuration: 6 inline cylinders, bore 110 mm × stroke 130 mm → displacement ~7.413 L
  • Aspiration: Turbocharged & intercooled
  • Injection: Mechanical direct injection for reliable high-load performance
  • Starting: 24 V electric starter (5 kW)
  • Cooling: Heat exchanger with freshwater/sea-water circuit
  • Emissions: IMO Tier II compliant, RVIR Tier II
  • Dry Weight: ~856 kg (1887 lb)
  • Dimensions (engine block): 1390 × 901 × 989 mm
Enquire Now

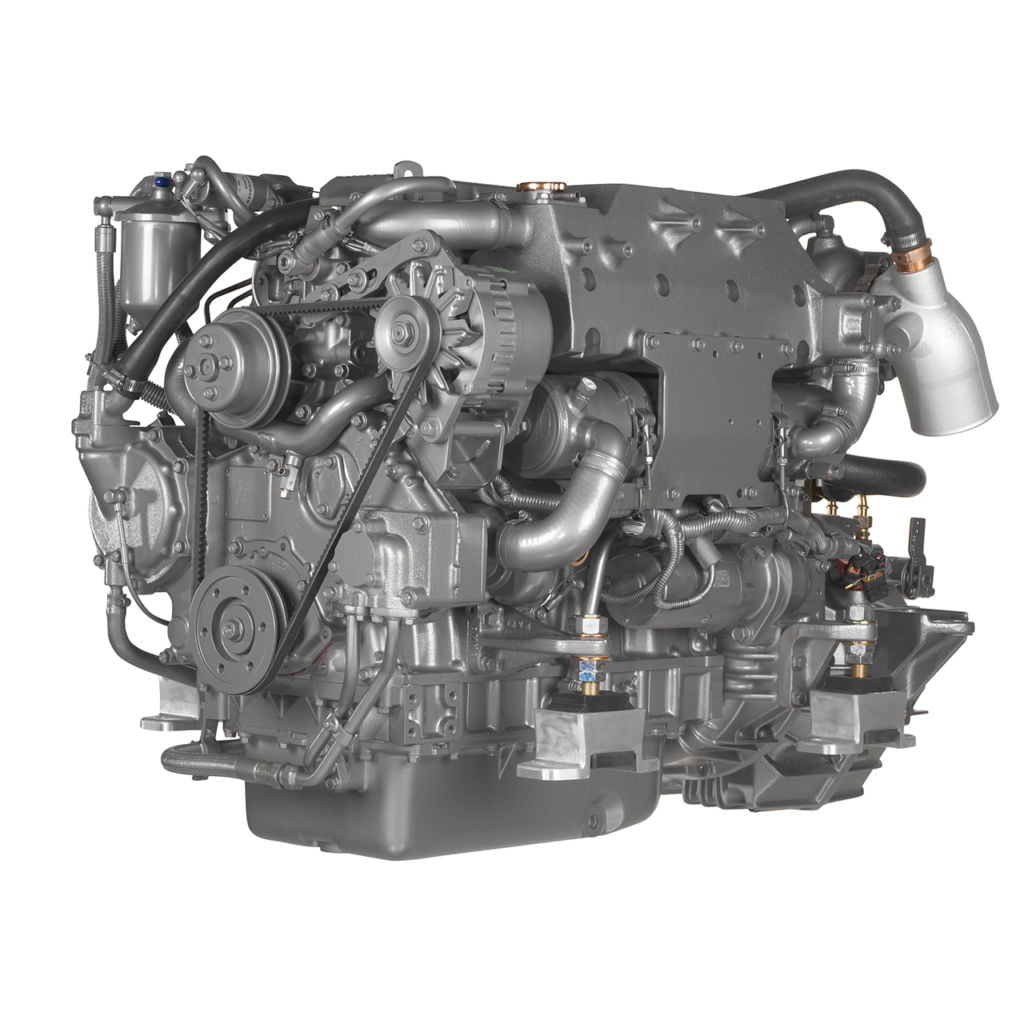

Yanmar 4LHA  Specifications:

  • Model Series: Yanmar 4LHA
  • Engine Type: 4-cylinder, 4-stroke, vertical, water-cooled diesel
  • Displacement: 3.46 liters (3469 cc)
  • Bore x Stroke: 100 mm x 110 mm
  • Cooling System: Heat exchanger (freshwater cooling)
  • Fuel System: In-line injection pump
  • Lubrication System: Wet sump
  • Governor Type: Mechanical
  • Starting System: Electric start
Enquire Now
